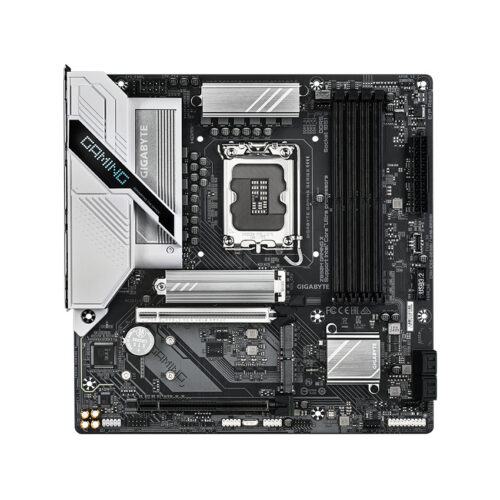

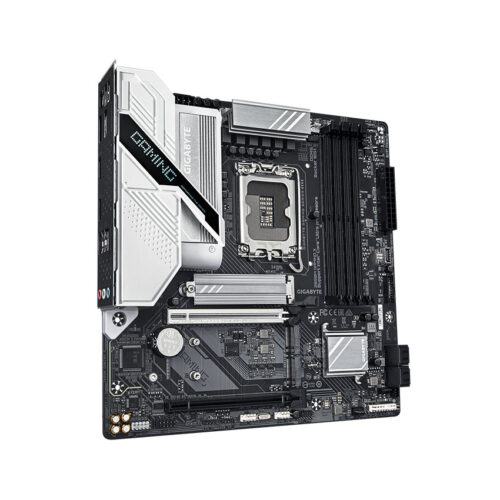

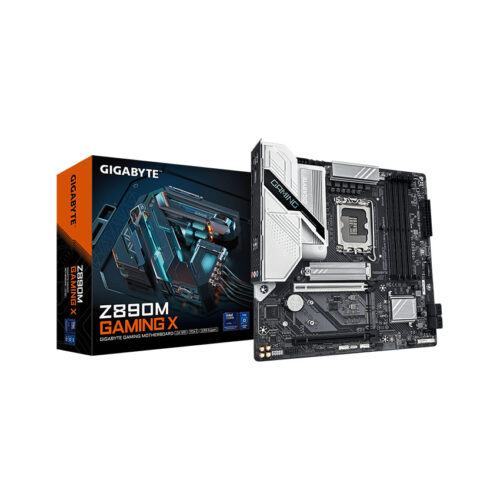

Name: Mainboard Gigabyte Z890M GAMING X
Brand: Gigabyte
SKU: MBGI0751

Liên hệ

Giá đã có VAT

Bảo hành: 36 tháng

Mã SP: MBGI0751

Thông số sản phẩm

Chipset: Intel Z890

Socket: Intel LGA 1851

Hỗ trợ CPU Intel® Core™ Ultra

Kích thước: M-ATX

Số khe RAM: 4 khe DDR5

Quà tặng và ưu đãi kèm theo

Miễn phí giao hàng toàn quốc.

Để được hỗ trợ tốt nhất.
Hãy gọi Hotline 0220.660.6666

KD 1: Đặng Thái An
ĐT: 0978 660 008

KD 2: Nguyễn Văn Tuyển
ĐT: 0962 987 327

MUA NHƯ VUA - CHĂM SÓC NHƯ VIP

Cam kết mới 100%

Đổi mới trong 7 ngày.

Giao hàng nhanh chóng

Giao hàng khắp Việt Nam

Thanh toán thuận tiện

Nhận và thanh toán tại nhà (COD)

Hỗ trợ nhiệt tình

Đường dây nóng: 0220.660.6666 (8:30 – 21:30)

Mô tả

mainboard gigabyte z890m gaming

Đánh giá (0)

Đánh giá Mainboard Gigabyte Z890M GAMING X

5 0% | 0 đánh giá

4 0% | 0 đánh giá

3 0% | 0 đánh giá

2 0% | 0 đánh giá

1 0% | 0 đánh giá

Đánh giá ngay

Đánh giá Mainboard Gigabyte Z890M GAMING X

Bạn phải đăng nhập để đăng bài đánh giá.

Thông số kỹ thuật

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
	L3 cache varies with CPU
	* Please refer to "CPU Support List" for more information.
Chipset	Intel® Z890 Express Chipset
Bộ nhớ	Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Bộ nhớ	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Card đồ họa tích hợp	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support for native HDMI 2.1 TMDS compatible ports.
	- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 2.1 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Âm thanh	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm mở rộng	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Giao diện lưu trữ	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	- 2 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Kết nối I/O bên trong	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	1 x system fan header
	1 x system fan/water cooling pump header
	2 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x Clear CMOS jumper

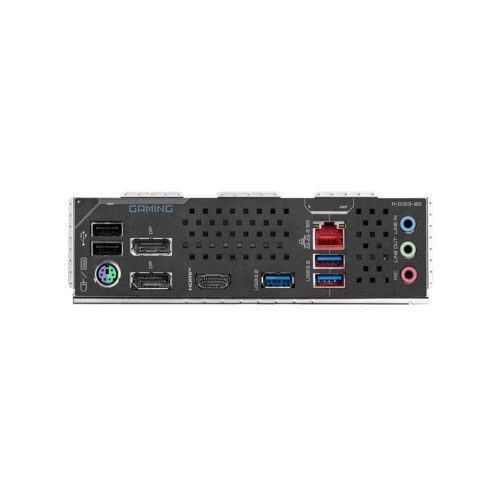

Kết nối bảng phía sau	1 x PS/2 keyboard/mouse port
	3 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x HDMI port (Note)
	2 x DisplayPorts (Note)
	1 x RJ-45 port
	3 x audio jacks

	(Note) Actual support may vary by CPU.
Điều khiển I/O	iTE® I/O Controller Chip
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Hệ điều hành	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Kích thước	Micro ATX Form Factor; 24.4cm x 24.4cm

Xem thêm cấu hình chi tiết

Thông số kỹ thuật chi tiết Mainboard Gigabyte Z890M GAMING X

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
	L3 cache varies with CPU
	* Please refer to "CPU Support List" for more information.
Chipset	Intel® Z890 Express Chipset
Bộ nhớ	Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Bộ nhớ	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Card đồ họa tích hợp	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support for native HDMI 2.1 TMDS compatible ports.
	- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 2.1 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Âm thanh	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm mở rộng	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Giao diện lưu trữ	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	- 2 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Kết nối I/O bên trong	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	1 x system fan header
	1 x system fan/water cooling pump header
	2 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x Clear CMOS jumper
Kết nối bảng phía sau	1 x PS/2 keyboard/mouse port
	3 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x HDMI port (Note)
	2 x DisplayPorts (Note)
	1 x RJ-45 port
	3 x audio jacks

	(Note) Actual support may vary by CPU.
Điều khiển I/O	iTE® I/O Controller Chip
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Hệ điều hành	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Kích thước	Micro ATX Form Factor; 24.4cm x 24.4cm
