Bạn đang xem phiên bản: Mainboard Gigabyte B650M Gaming Wifi - HÀNG NK
3.190.000 ₫
Giá niêm yết:
3.590.000 ₫
Tiết kiệm: 11%
400.000 ₫
Giá đã có VAT
Bảo hành: 36 tháng
Mã SP: MBGGB65GMW
Thông số sản phẩm
Socket: AMD Socket AM5 hỗ trợ CPU AMD Ryzen ™ 7000 Series
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 1 x PCI Express x16 slot
Khe cắm ổ cứng: M.2 connector, 4 x SATA 6Gb/s connectors
Quà tặng và ưu đãi kèm theo
- Miễn phí giao hàng toàn quốc.
Để được hỗ trợ tốt nhất.
Hãy gọi Hotline 0220.660.6666
KD 1: Đặng Thái An
ĐT: 0978 660 008
KD 2: Nguyễn Văn Tuyển
ĐT: 0962 987 327
MUA NHƯ VUA - CHĂM SÓC NHƯ VIP
Giao hàng nhanh chóng
Giao hàng khắp Việt Nam
Thanh toán thuận tiện
Nhận và thanh toán tại nhà (COD)
Hỗ trợ nhiệt tình
Đường dây nóng: 0220.660.6666 (8:30 – 21:30)
Bộ sản phẩm gồm:
Mô tả

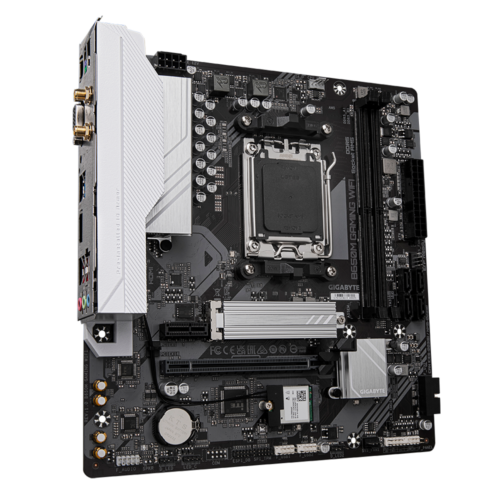

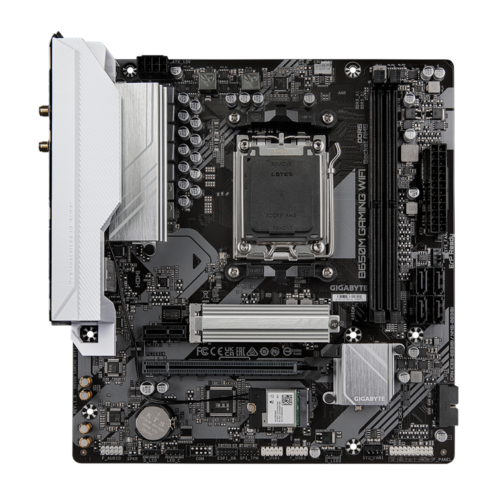

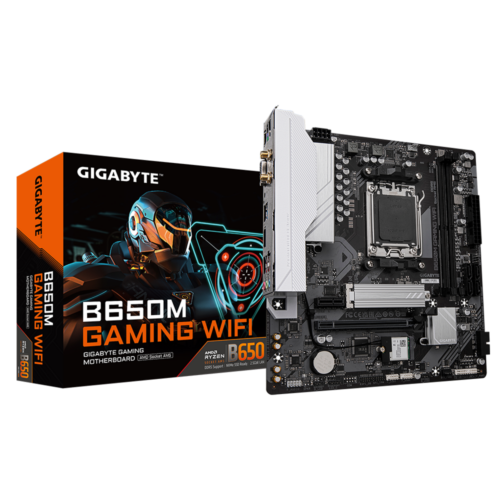

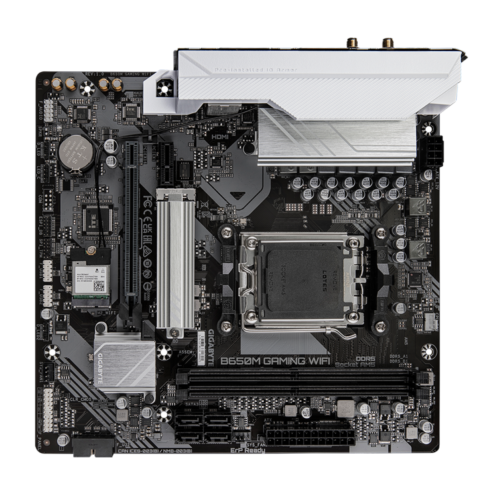

B650M GAMING WIFI
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & 802.11ac Wi-Fi
- Extended Connectivity：HDMI , D-sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Đánh giá (0)
Sản phẩm tương tự
-9%
Tiết kiệm 9 % 1.000.000 ₫
Giá gốc là: 10.999.000 ₫.9.999.000 ₫Giá hiện tại là: 9.999.000 ₫.
-35%
Tiết kiệm 35 % 3.500.000 ₫
Giá gốc là: 9.999.000 ₫.6.499.000 ₫Giá hiện tại là: 6.499.000 ₫.
-36%
Tiết kiệm 36 % 3.600.000 ₫
Giá gốc là: 9.999.000 ₫.6.399.000 ₫Giá hiện tại là: 6.399.000 ₫.
-17%
Tiết kiệm 17 % 1.000.000 ₫
Giá gốc là: 5.999.000 ₫.4.999.000 ₫Giá hiện tại là: 4.999.000 ₫.
Thông số kỹ thuật
CPU | AMD Socket AM5, support for: |
| AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors | |
| (Go to GIGABYTE’s website for the latest CPU support list.) | |
Chipset | AMD B650 |
Bộ nhớ | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme | |
| Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) | |
Card đồ họa tích hợp | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| ** Support for native HDMI 2.1 TMDS compatible ports. | |
| (Graphics specifications may vary depending on CPU support.) | |
Âm thanh | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) |
| – WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band | |
| – BLUETOOTH 4.2 | |
| – Support for 11ac wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
Khe cắm mở rộng | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode | |
| – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
Giao diện lưu trữ | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: |
| – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs | |
| – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
USB | CPU: |
| – 2 x USB 3.2 Gen 1 ports on the back panel | |
| – 1 x USB 2.0/1.1 port on the back panel | |
| Chipset: | |
| – 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| – 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through | |
| the internal USB header) | |
| Chipset+USB 2.0 Hub: | |
| – 2 x USB 2.0/1.1 ports available through the internal USB header | |
Kết nối I/O bên trong | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 2 x addressable LED strip headers | |
| 1 x RGB LED strip header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) | |
| 1 x Clear CMOS jumper | |

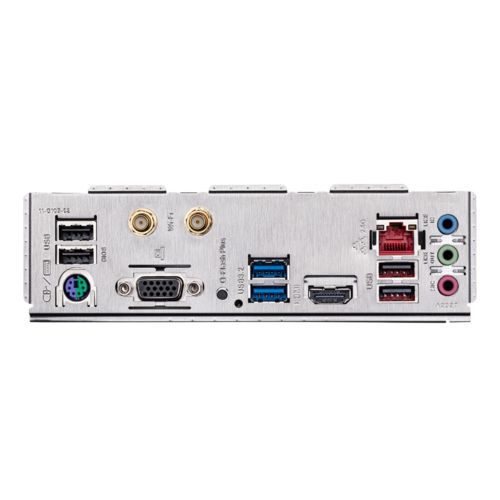

Kết nối bảng phía sau | 4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 1 x D-Sub port | |
| 1 x Q-Flash Plus button | |
| 2 x USB 3.2 Gen 1 ports | |
| 1 x HDMI port | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
Điều khiển I/O | iTE® I/O Controller Chip |
Theo dõi phần cứng | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Tính năng duy nhất | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
Gói phần mềm | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
Hệ điều hành | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
Hệ số khuôn | Micro ATX Form Factor; 24.0cm x 22.5cm |
Thông số kỹ thuật chi tiết Mainboard Gigabyte B650M Gaming Wifi - HÀNG NK
CPU | AMD Socket AM5, support for: |
| AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors | |
| (Go to GIGABYTE’s website for the latest CPU support list.) | |
Chipset | AMD B650 |
Bộ nhớ | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme | |
| Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) | |
Card đồ họa tích hợp | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| ** Support for native HDMI 2.1 TMDS compatible ports. | |
| (Graphics specifications may vary depending on CPU support.) | |
Âm thanh | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) |
| – WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band | |
| – BLUETOOTH 4.2 | |
| – Support for 11ac wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
Khe cắm mở rộng | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode | |
| – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
Giao diện lưu trữ | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: |
| – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs | |
| – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
USB | CPU: |
| – 2 x USB 3.2 Gen 1 ports on the back panel | |
| – 1 x USB 2.0/1.1 port on the back panel | |
| Chipset: | |
| – 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| – 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through | |
| the internal USB header) | |
| Chipset+USB 2.0 Hub: | |
| – 2 x USB 2.0/1.1 ports available through the internal USB header | |
Kết nối I/O bên trong | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 2 x addressable LED strip headers | |
| 1 x RGB LED strip header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) | |
| 1 x Clear CMOS jumper | |
Kết nối bảng phía sau | 4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 1 x D-Sub port | |
| 1 x Q-Flash Plus button | |
| 2 x USB 3.2 Gen 1 ports | |
| 1 x HDMI port | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
Điều khiển I/O | iTE® I/O Controller Chip |
Theo dõi phần cứng | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Tính năng duy nhất | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
Gói phần mềm | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
Hệ điều hành | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
Hệ số khuôn | Micro ATX Form Factor; 24.0cm x 22.5cm |
