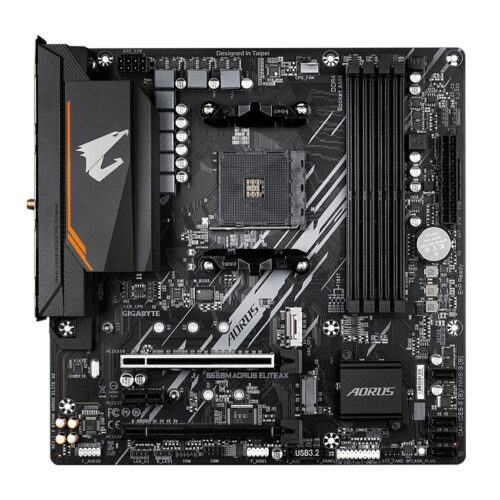

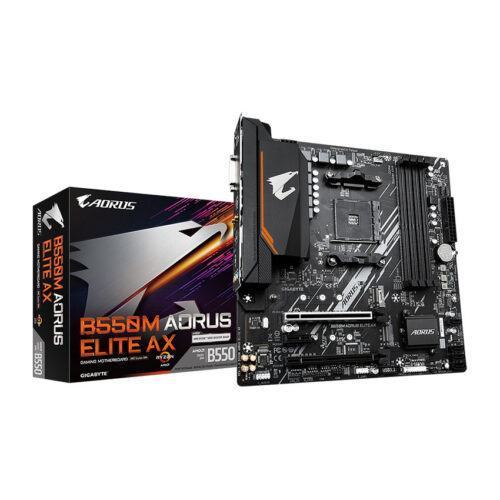

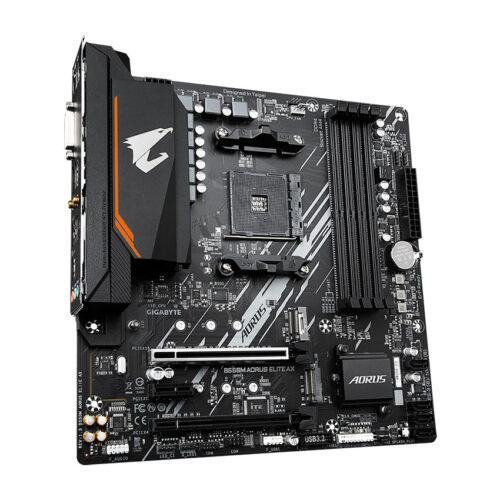

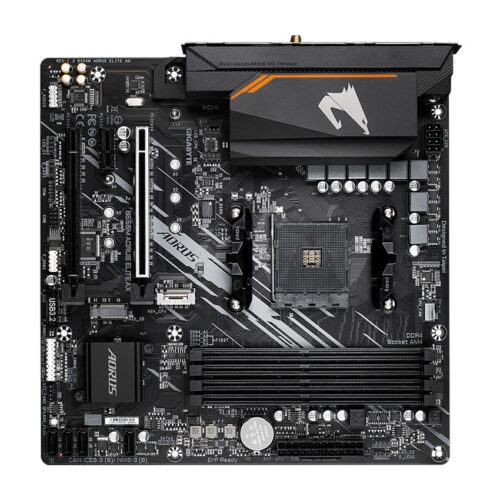

Name: Mainboard Gigabyte B550M AORUS ELITE AX - HÀNG NK
Brand: Gigabyte
SKU: MBGI0707-1
Price: 2590000 VND
Availability: InStock

-40%

2.590.000 ₫

Giá niêm yết: ~~4.299.000 ₫~~

Tiết kiệm: 40% 1.709.000 ₫

Giá đã có VAT

Bảo hành: 36 tháng

Mã SP: MBGI0707-1

Thông số sản phẩm

Socket: AM4

Chipset: B550

Khe RAM tối đa: 4

Loại RAM hỗ trợ: DDR4

Kích thước: M-ATX

Hãy để lại SĐT, chuyên viên tư vấn của chúng tôi sẽ gọi ngay cho bạn miễn phí!

Quà tặng và ưu đãi kèm theo

Miễn phí giao hàng toàn quốc.

Để được hỗ trợ tốt nhất.
Hãy gọi Hotline 0220.660.6666

KD 1: Đặng Thái An
ĐT: 0978 660 008

KD 2: Nguyễn Văn Tuyển
ĐT: 0962 987 327

MUA NHƯ VUA - CHĂM SÓC NHƯ VIP

Cam kết mới 100%

Đổi mới trong 7 ngày.

Giao hàng nhanh chóng

Giao hàng khắp Việt Nam

Thanh toán thuận tiện

Nhận và thanh toán tại nhà (COD)

Hỗ trợ nhiệt tình

Đường dây nóng: 0220.660.6666 (8:30 – 21:30)

Đánh giá (0)

Đánh giá Mainboard Gigabyte B550M AORUS ELITE AX – HÀNG NK

5 0% | 0 đánh giá

4 0% | 0 đánh giá

3 0% | 0 đánh giá

2 0% | 0 đánh giá

1 0% | 0 đánh giá

Đánh giá ngay

Đánh giá Mainboard Gigabyte B550M AORUS ELITE AX – HÀNG NK

Bạn phải đăng nhập để đăng bài đánh giá.

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	B550M AORUS ELITE AX
CPU hỗ trợ	AMD Socket AM4 for AMD Ryzen™ 5000 Series , Ryzen™ 4000 Series, Ryzen™ 3000 Series
Chipset	B550
RAM hỗ trợ	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU’s specification. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Ổ cứng hỗ trợ	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button

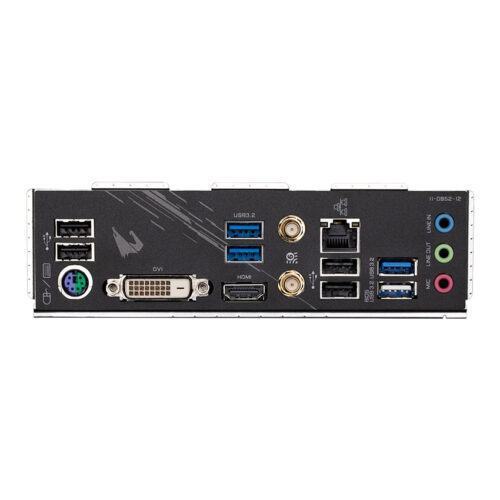

Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
WIRELESS/ BLUETOOTH	Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm

Xem thêm cấu hình chi tiết

Thông số kỹ thuật chi tiết Mainboard Gigabyte B550M AORUS ELITE AX - HÀNG NK

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	B550M AORUS ELITE AX
CPU hỗ trợ	AMD Socket AM4 for AMD Ryzen™ 5000 Series , Ryzen™ 4000 Series, Ryzen™ 3000 Series
Chipset	B550
RAM hỗ trợ	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU’s specification. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Ổ cứng hỗ trợ	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
WIRELESS/ BLUETOOTH	Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm
