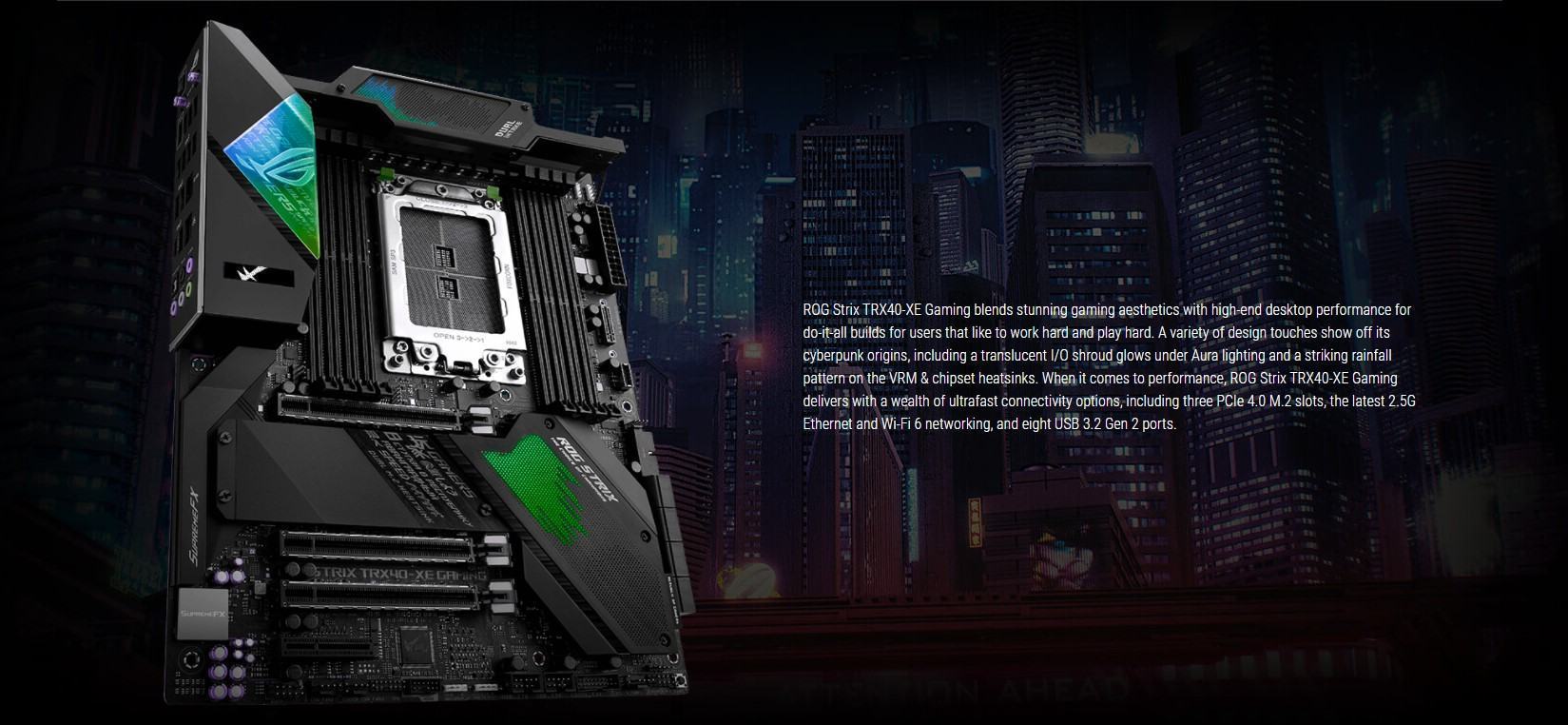

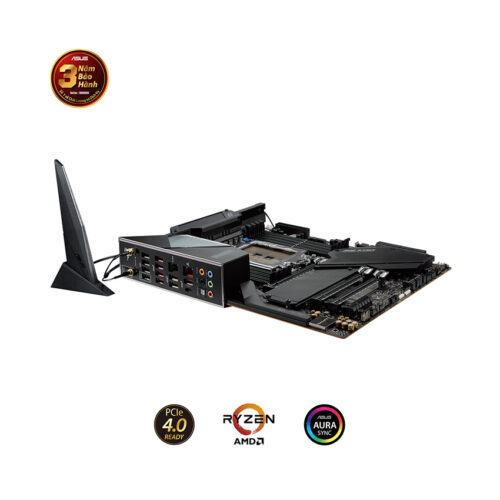

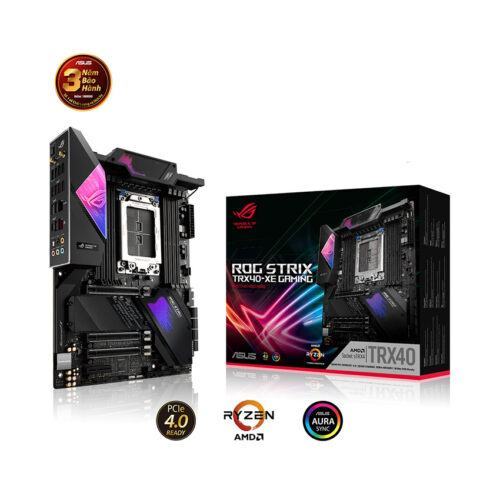

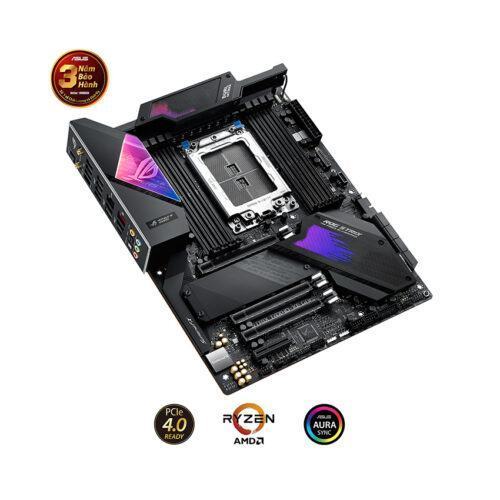

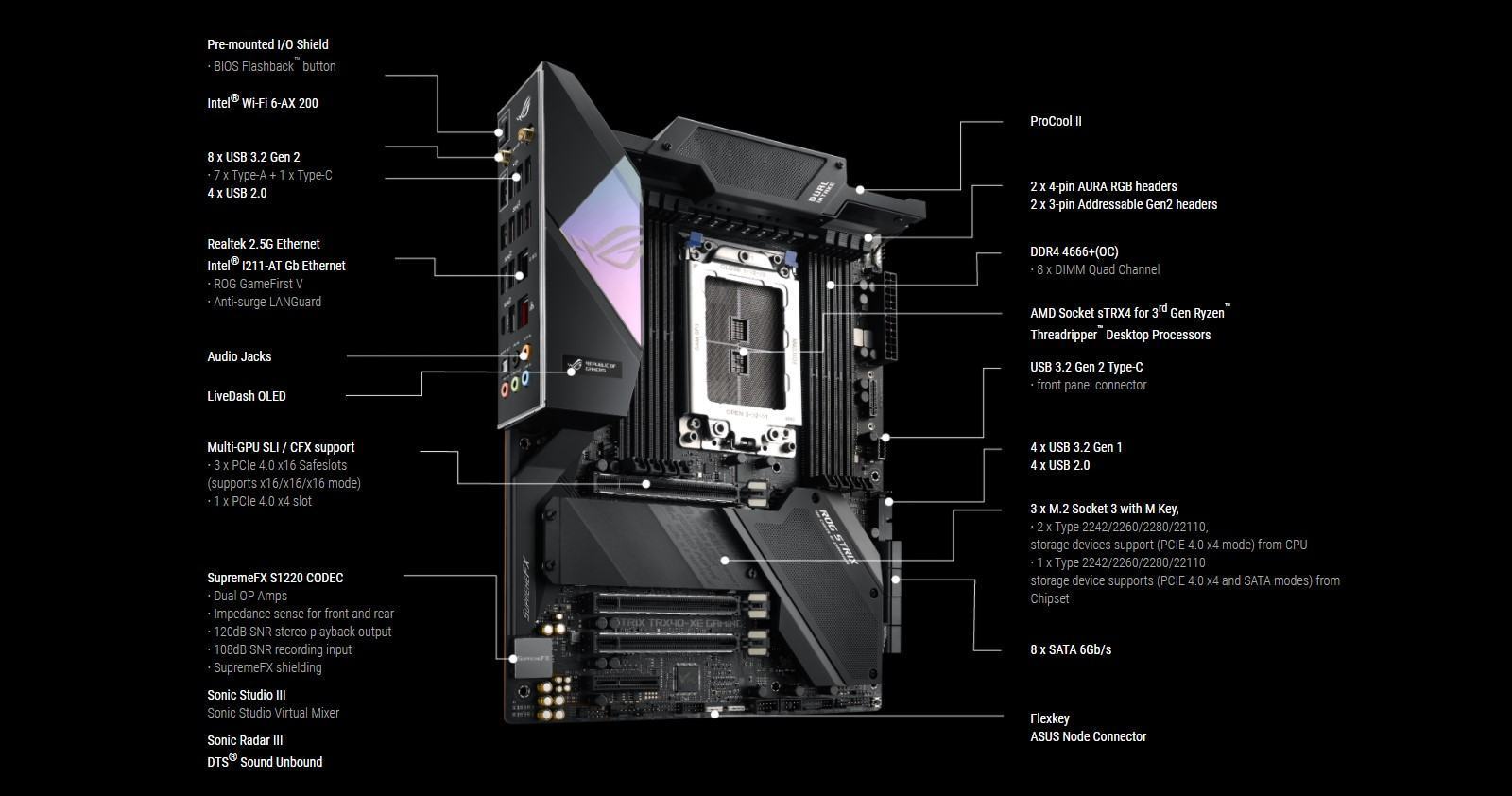

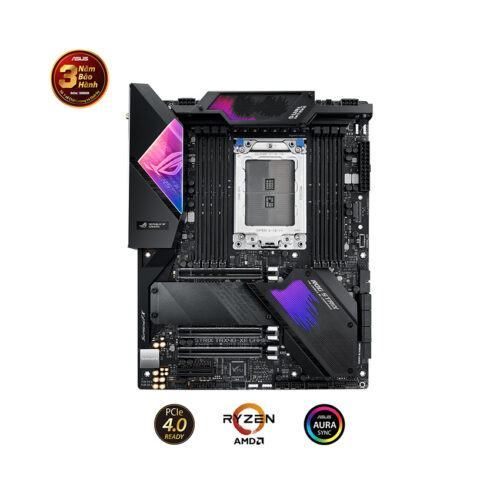

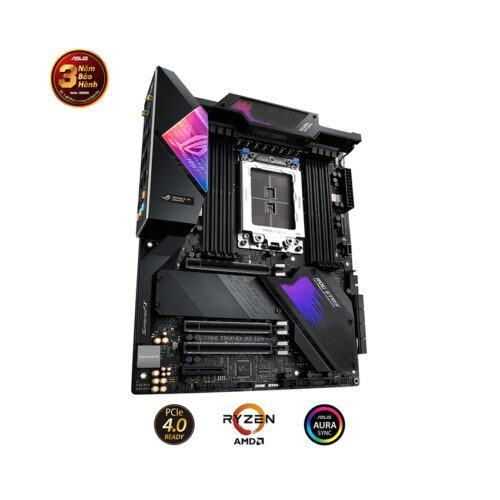

Mainboard ASUS TRX40-XE GAMING (AMD TRX40, Socket sTRX4, ATX, 8 khe RAM DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

TRX40-XE GAMING

CPU hỗ trợ

AMD Socket sTRX4

Chipset

AMD TRX40

RAM hỗ trợ

8 x DIMM, Max. 256GB, DDR4 4666/4600/4400/4333/4266/4133/3800/3733/3466/3200/2800/2666/2400/2133 MHz

Khe cắm mở rộng

3 x PCIe 4.0 x16 (x16/x16/x16)

1 x PCIe 4.0 x4

Ổ cứng hỗ trợ

2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)

1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :

AMD TRX40 chipset :

8 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

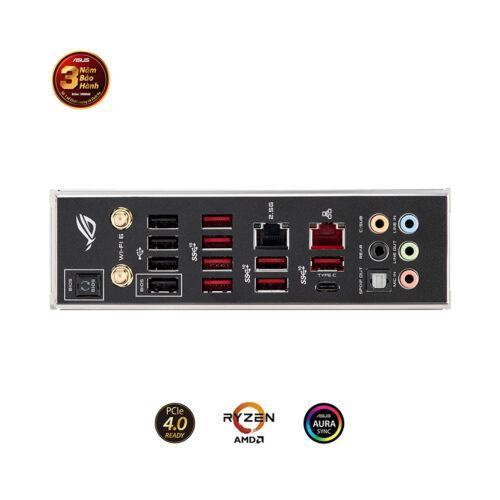

Cổng kết nối (Internal)

2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)

1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

1 x Chipset Fan Header

1 x VRM_HS_FAN Header

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

1 x USB 3.2 Gen 2 front panel connector

2 x Aura RGB Strip Header

2 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x TPM header

8 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x W_PUMP+ connector

1 x 24-pin EATX Power connector(s)

2 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Thermal sensor connector(s)

1 x Power-on button(s)

1 x Clear CMOS jumper(s)

1 x Node Connector(s)

1 x System panel connector

1 x Speaker connector

LAN / Wireless

Realtek® RTL8125-CG 2.5G LAN

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm )
