Mainboard ASUS ROG STRIX Z790-E GAMING WIFI II

• Intel Core 12th/ 13th/14th
• Socket LGA1700

4 x DDR5 8000+(OC)/ 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/4800 MHz (Maximum 192GB)

• Intel Core 14th & 13th & 12th: 1 x PCIe 5.0 x16 (x16 mode)
• Intel Z790 chipset: 2 x PCIe 4.0 x16 (x4 mode)

1x M.2 2242/2260/2280/22110 PCIe 5.0 x4

3 x M.2 2242/2260/2280 PCIe 4.0 x4

2 x 2280 PCIe 4.0 x4

1 x M.2 2242/2260/2280 PCIe 4.0 x4/ SATA

4 x SATA III 6Gbps

Support Raid 0, 1, 5, 10

• LAN: Intel 2.5Gb Ethernet
• Wireless: Intel Wi-Fi 7 + BT 5.4

-Fan and Cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

-Power

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

-Storage

5 x M.2 slot

4 x SATA 6Gb/s

-USB

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)

2 x USB 5Gbps headers support 4 additional USB 5G ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

-Miscellaneous

3 x Addressable Gen 2 headers

1 x Alternation PCIe Mode Switch

1 x AURA RGB header

1 x CPU over voltage jumper

1 x Front panel audio header (F_AUDIO)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

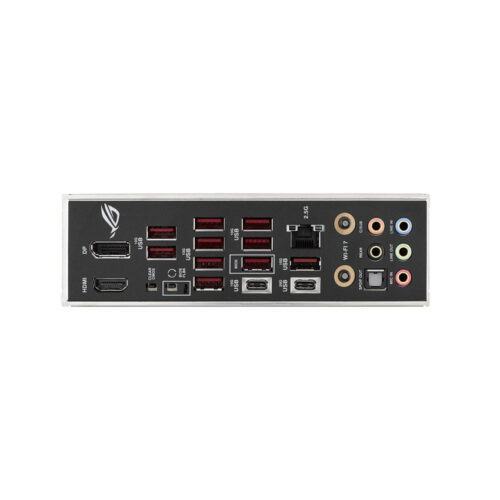

1 x USB 20Gbps port (1 x USB Type-C®)

10 x USB 10Gbps ports Type-A

1 x USB 10Gbps ports Type-C

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

*Cổng Line out của đầu kết nối phía sau không hỗ trợ để phát âm thanh. Nếu bạn muốn sử dụng để cắm thiết bị âm thanh, hãy kết nối đầu ra thiết bị với giắc cắm âm thanh ở mặt trước của thùng máy.
