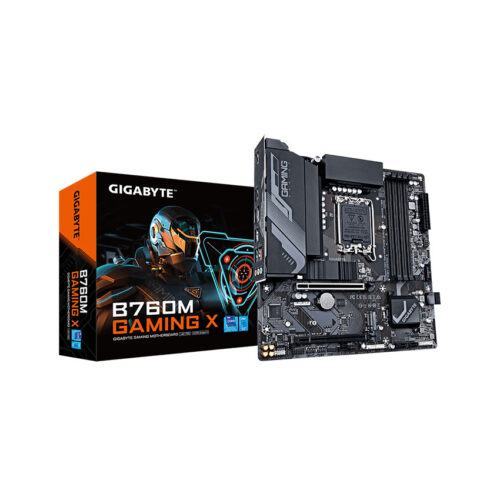

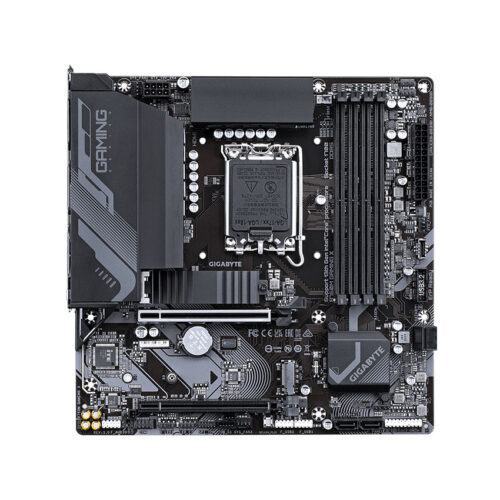

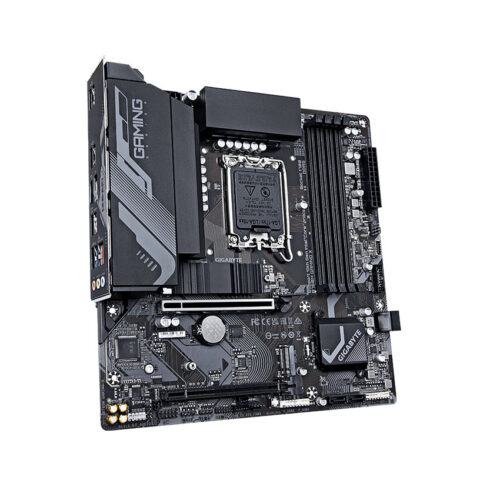

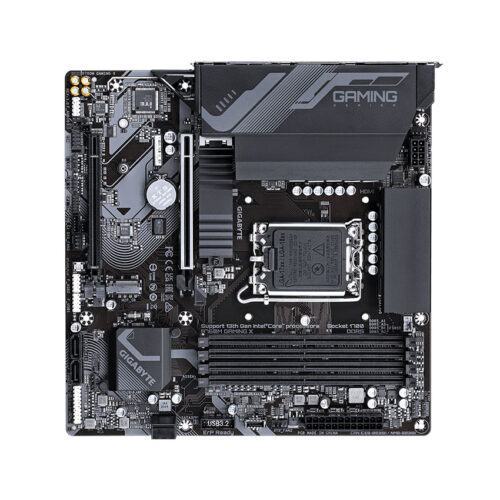

Mainboard Gigabyte B760M GAMING X DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

B760M GAMING X DDR4

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

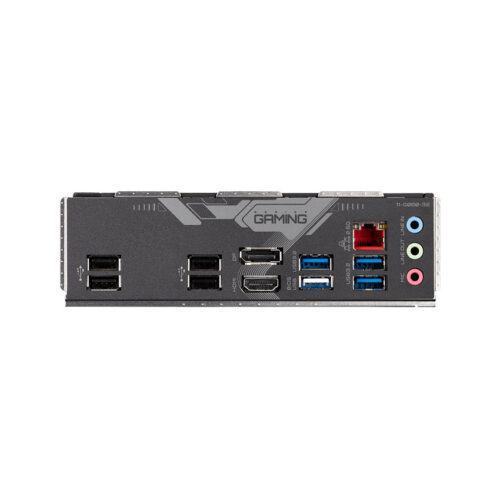

Cổng kết nối (Back Panel)

3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
