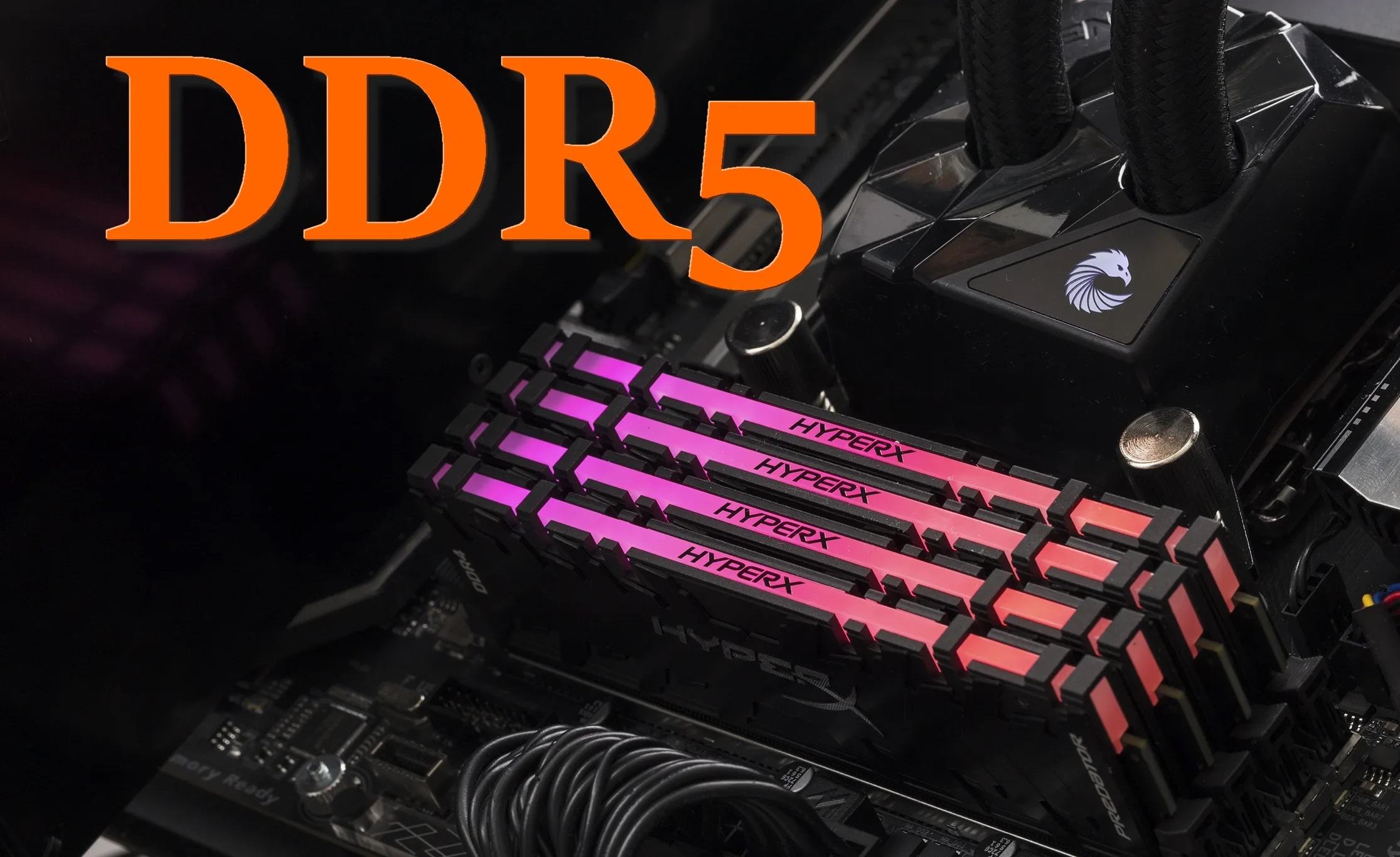

Để đạt được hiệu năng cao nhất, bo mạch chủ này được thiết kể sử dụng hệ thống ram DDR5 mới nhất, tối ưu hiệu suất, tốc độ và tăng cường khả năng ép xung
So với các dòng ram thế hệ trước, RAM DDR5 có dung lượng vượt trội lên đến 128GB/thanh. Ngoài ra, tốc độ RAM cũng được tăng lên giúp cho các phần mềm hoạt động mượt và nhẹ nhàng hơn.
Ta đã tìm hiểu và thu nhập được nhiều thông tin về DDR5 qua bài viết ở trên. Ta có thể thấy DDR5 đã được nâng cấp, cải tiến vượt trội hơn rất nhiều so với RAM DDR4:
Tiết kiệm 35 % 3.500.000 ₫
Ram Desktop Gskill Trident Z RGB Silver(F5-6400J3239G32GX2-TZ5RS) 64GB (2x32GB) DDR5 6400 MHz
Tiết kiệm 27 % 1.600.000 ₫
Ram Desktop Gskill TRIDENT Z5 RGB Silver (F5-7200J3445G16GX2-TZ5RS) 32GB (2x16GB) DDR5 7200Mhz
Tiết kiệm 7 % 300.000 ₫
Ram Desktop GSkill Trident Z5 Neo RGB (F5-6000J3038F16GX2-TZ5NR) 32GB (2 x 16GB) DDR5 6000Mhz
Tiết kiệm 48 % 910.000 ₫
Ram Desktop Corsair Vengeance LPX (CMK16GX4M1E3200C16) 16GB (1x16GB) DDR4 3200MHz

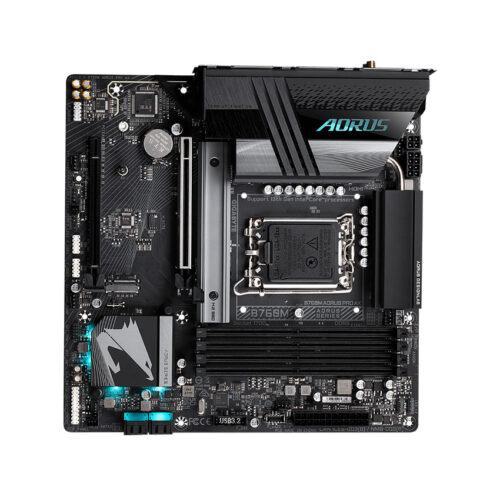

Sản phẩm | Bo mạch chủ |
Tên Hãng | GIGABYTE |
Model | B760M AORUS PRO AX |
CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700 |
Chipset | B760 |
RAM hỗ trợ | 1.Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2.4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 3.Dual channel memory architecture 4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6.Support for Extreme Memory Profile (XMP) memory modules |
Khe cắm mở rộng | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |

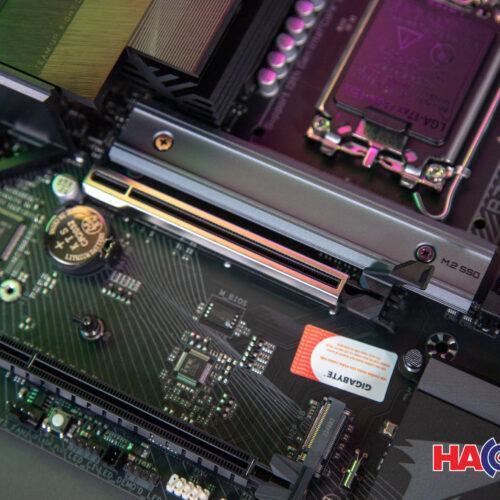

Ổ cứng hỗ trợ | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper |

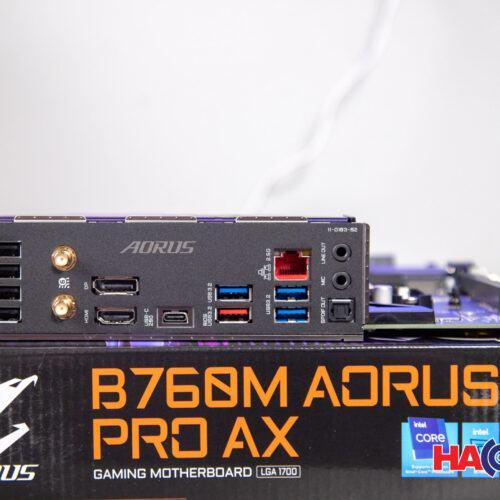

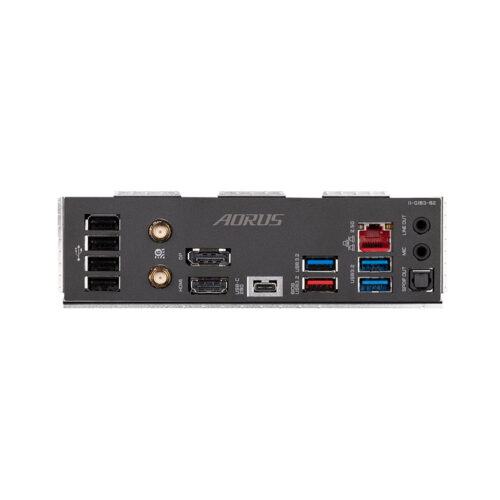

Cổng kết nối (Back Panel) | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
LAN / Wireless | 1.Realtek® GbE LAN chip (1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX211 1.WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2.BLUETOOTH 5.3 3.Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |

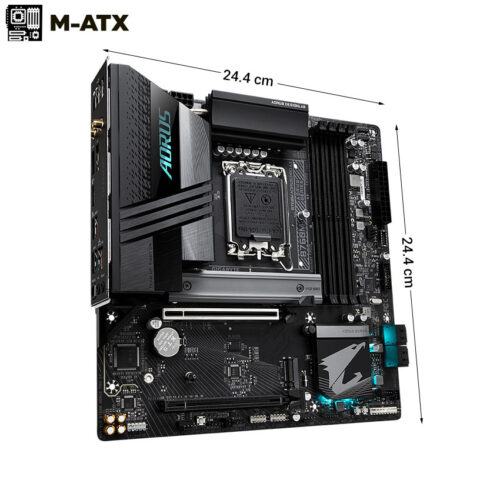

Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
Sản phẩm | Bo mạch chủ |
Tên Hãng | GIGABYTE |
Model | B760M AORUS PRO AX |
CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700 |
Chipset | B760 |
RAM hỗ trợ | 1.Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2.4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 3.Dual channel memory architecture 4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6.Support for Extreme Memory Profile (XMP) memory modules |
Khe cắm mở rộng | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
Ổ cứng hỗ trợ | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper |
Cổng kết nối (Back Panel) | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
LAN / Wireless | 1.Realtek® GbE LAN chip (1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX211 1.WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2.BLUETOOTH 5.3 3.Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
5699000

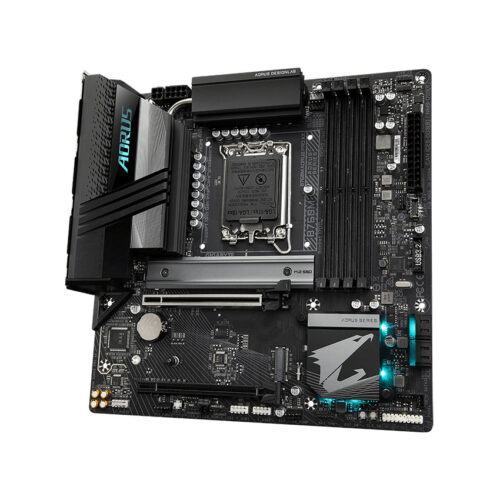

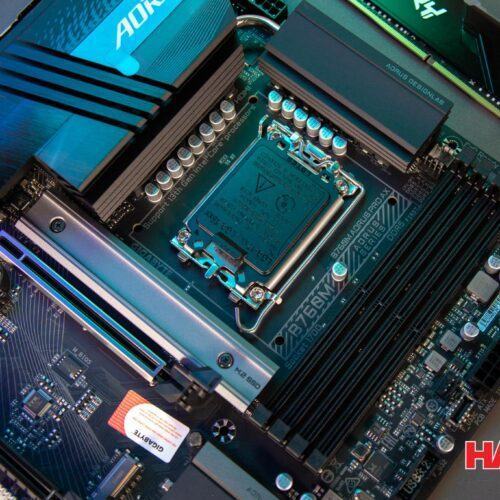

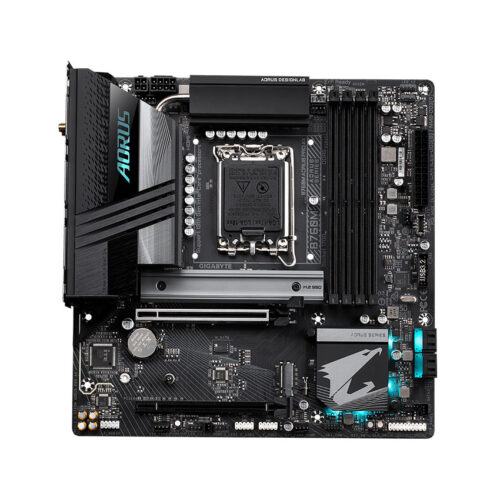

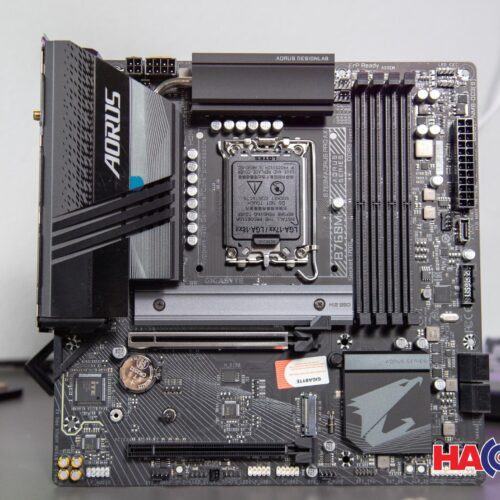

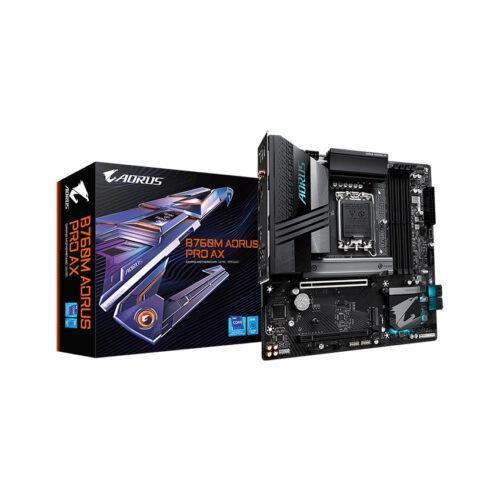

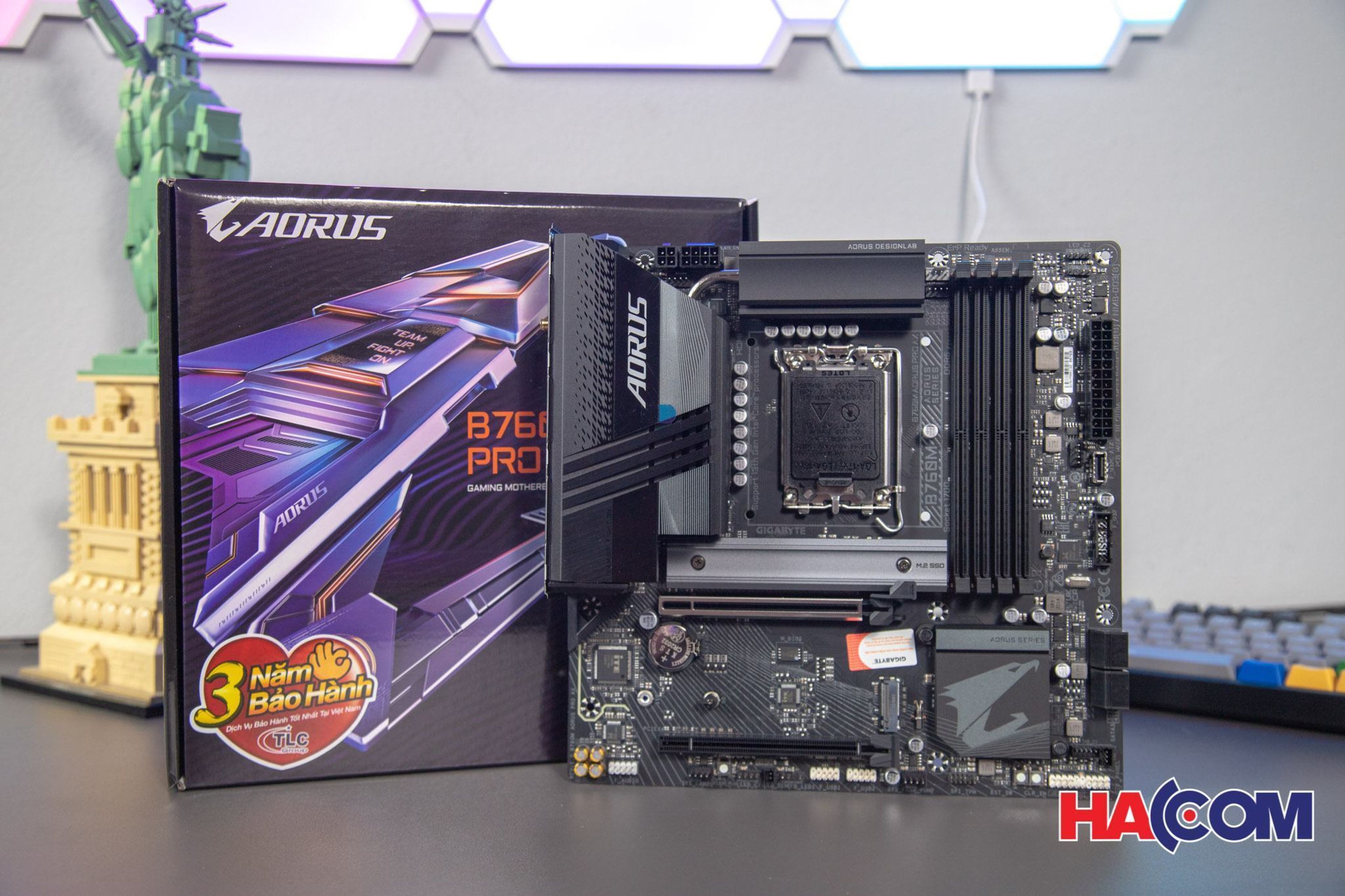

Mainboard Gigabyte B760M AORUS PRO AX DDR5
