Sản phẩm | Bo mạch chủ |
Tên Hãng | Asus |
Model | ROG MAXIMUS Z790 EXTREME |
CPU hỗ trợ | Intel |
Chipset | Intel Z790 Chipset |

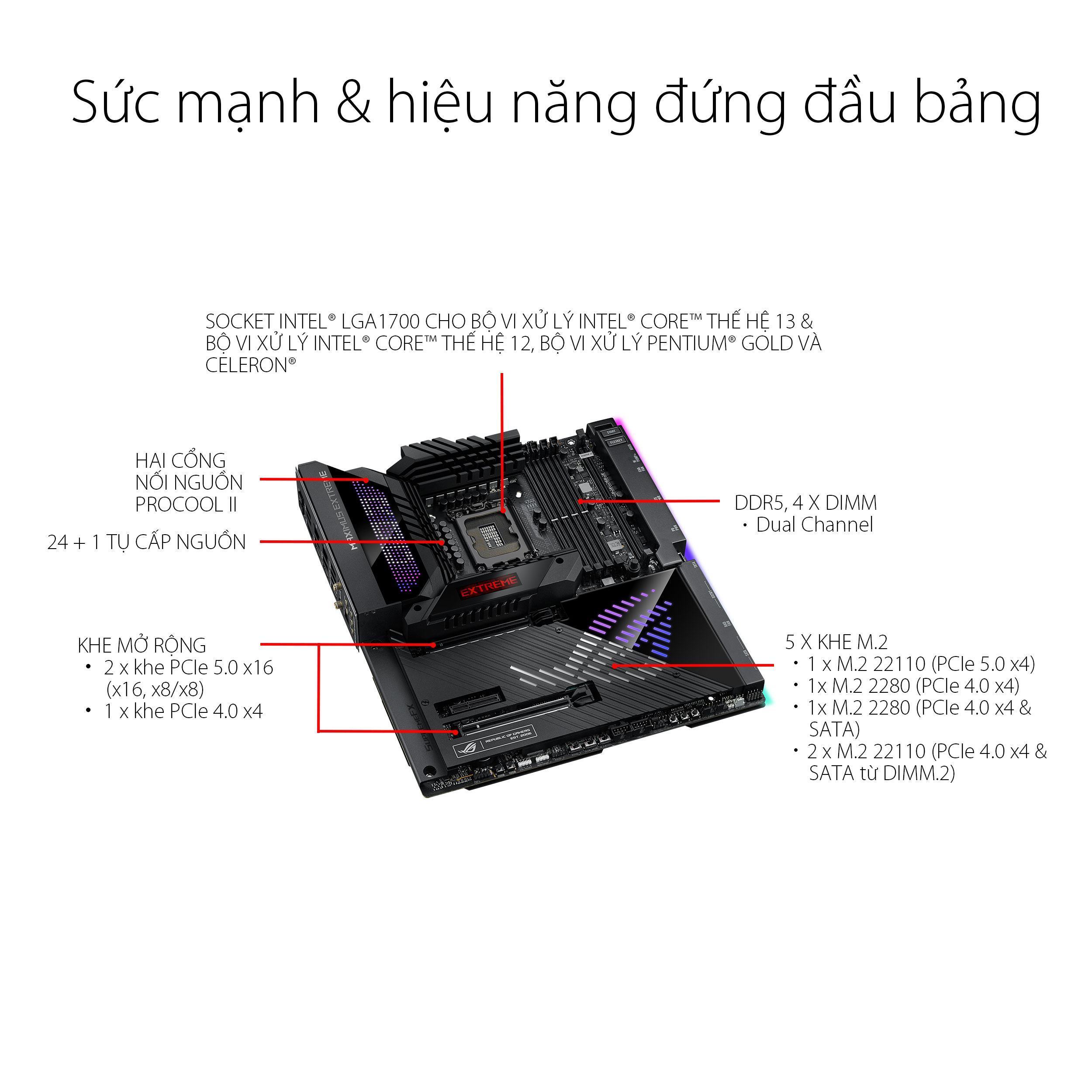

RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
Khe cắm mở rộng | Intel® 13th & 12th Gen Processors* |

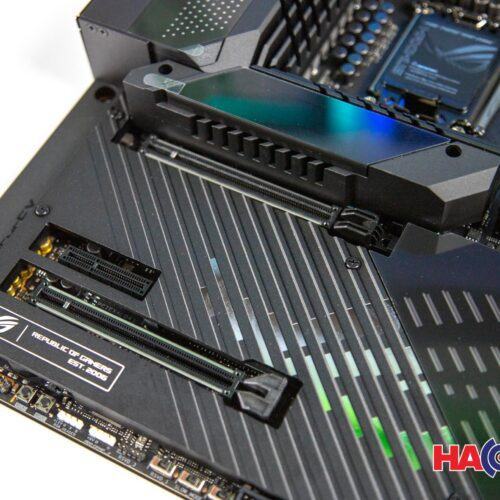

2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) | |
Intel® Z790 Chipset | |
1 x PCIe 4.0x4 slot | |
Ổ cứng hỗ trợ | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* |
Intel® 13th & 12th Gen Processors | |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** | |
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
Intel® Z790 Chipset | |
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) | |
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |

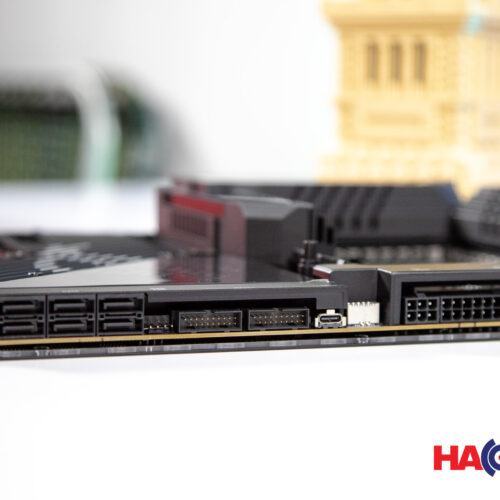

6 x SATA 6Gb/s ports | |
Cổng kết nối (Internal | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
2 x 4-pin Chassis Fan headers | |
2 x 4-pin Radiator Fan headers | |
2 x W_PUMP+ headers | |
1 x WB_SENSOR header | |
1 x 2-pin Water In header | |
1 x 2-pin Water Out header | |
1 x 3-pin Water Flow header | |
Power related | |

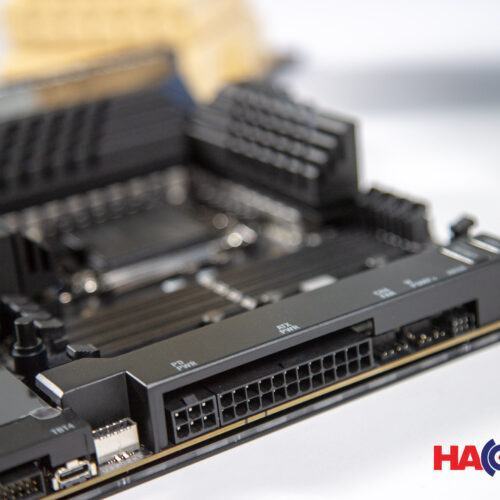

1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connector | |
1 x 6-pin PCIe Power connector | |
Storage related | |
3 x M.2 slots (Key M) | |
1 x DIMM.2 slot supports 2 x M.2 slots (Key M) | |
6 x SATA 6Gb/s ports | |
USB | |
1 x Thunderbolt™ 4 USB Type-C® port | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) | |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
Miscellaneous | |
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers | |
1 x Addressable Gen 2 header | |
1 x Aura RGB header | |
2 x BCLK button | |
1 x BIOS Switch button | |
1 x FlexKey button | |
1 x Front Panel Audio header (AAFP) | |
1 x LN2 Mode jumper | |
1 x Osc sense header | |
12 x ProbeIt Measurement Points | |
1 x ReTry button | |
1 x RSVD switch | |
1 x RSVD header | |
1 x Safe Boot button | |
1 x Slow Mode switch | |
1 x Start button | |
1 x V_Latch switch | |
1 x 10-1 pin System Panel header | |
1 x Thermal Sensor header | |

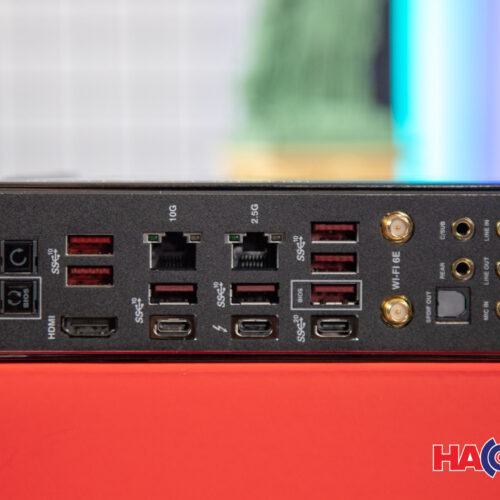

Cổng kết nối (Back Panel) | 1 x Thunderbolt™ 4 USB Type-C® port |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) | |
1 x HDMI® port | |
1 x Wi-Fi Module | |
1 x Intel® 2.5Gb Ethernet port | |
1 x Marvell® AQtion 10Gb Ethernet port | |
5 x LED-illuminated audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack™ button | |
1 x Clear CMOS button | |
LAN / Wireless | 1 x Intel® 2.5Gb Ethernet |
1 x Marvell® AQtion 10Gb Ethernet | |
ASUS LANGuard | |
Kích cỡ | E-ATX Form Factor |
12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
