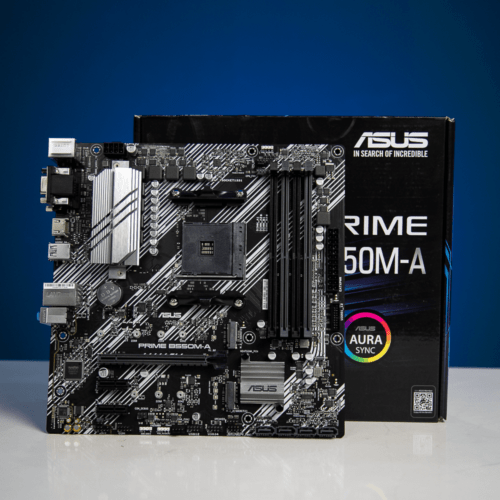

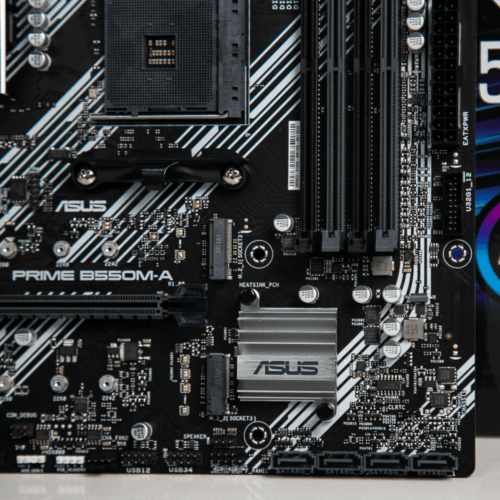

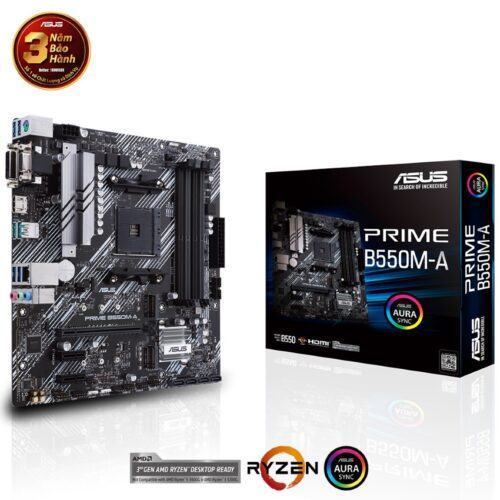

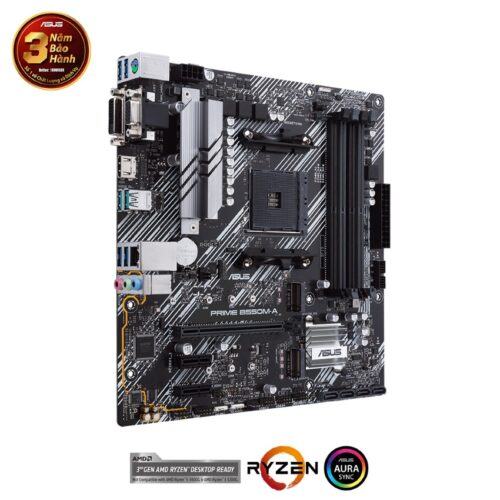

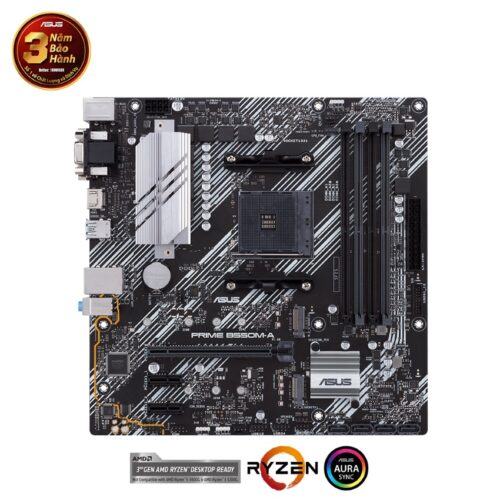

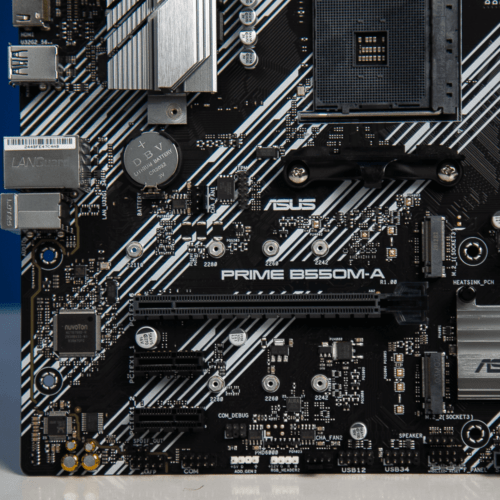

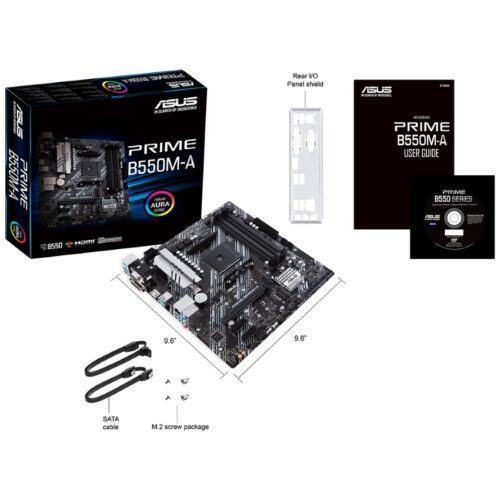

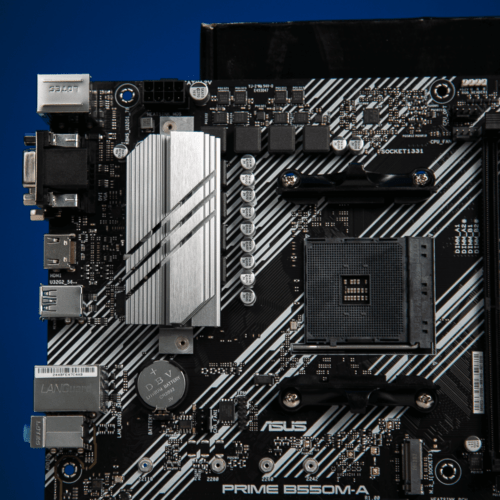

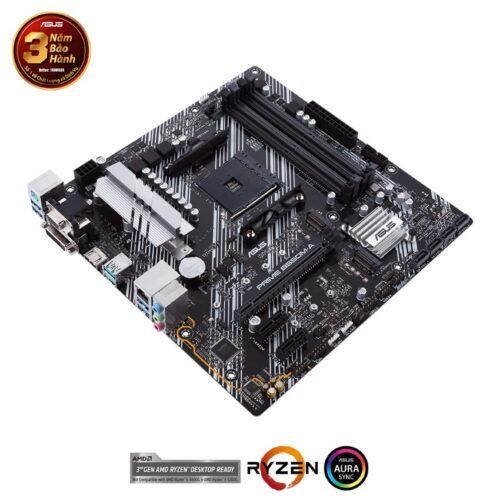

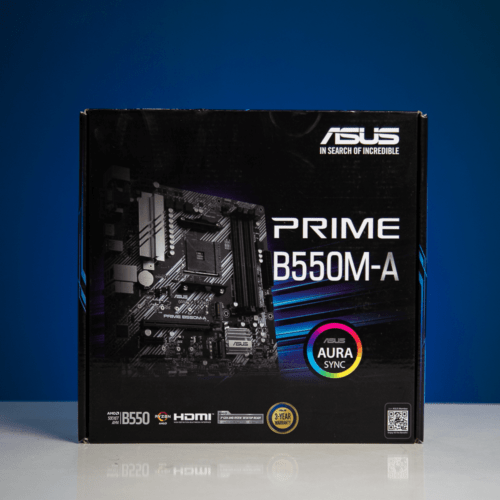

Mainboard ASUS PRIME B550M-A (AMD B550, Socket AM4,m- ATX, 4 khe RAM DRR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

Prime B550M-A

Socket

AM4

Hỗ trợ CPU

Supports AMD 3nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors

Chipset

AMD B550

Hỗ trợ RAM

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
ECC Memory (ECC mode) support varies by CPU.

Cạc đồ họa

VGA onboard

Âm thanh

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Cạc mạng

Realtek RTL8111H 1Gb Ethernet

Khe cắm trong

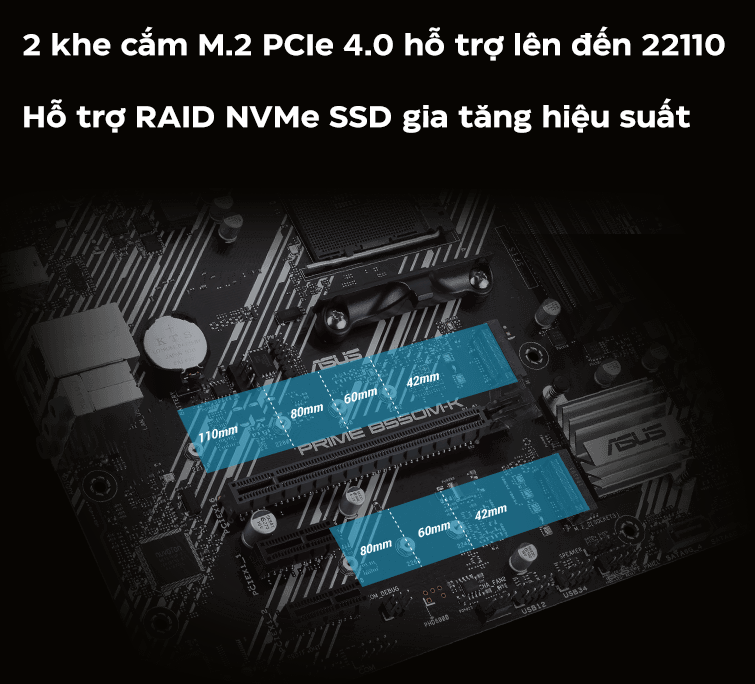

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

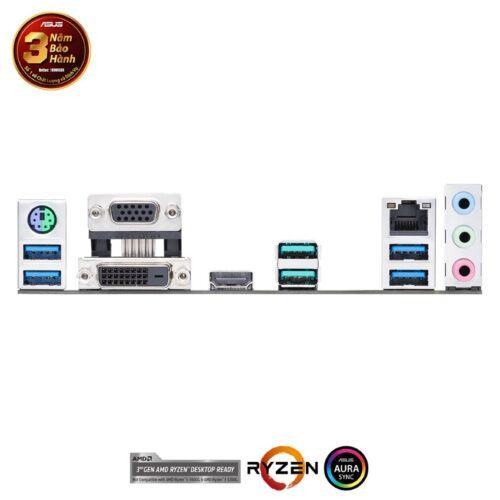

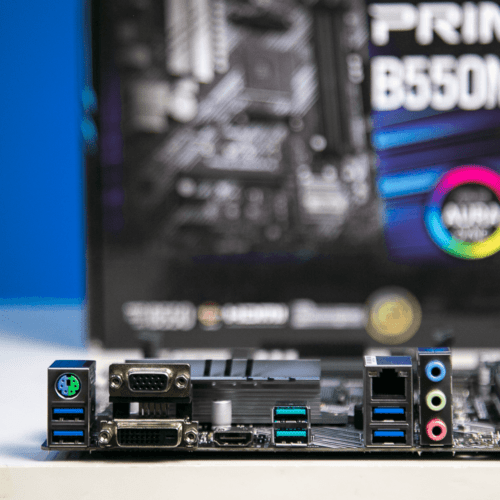

Cổng giao tiếp ngoài

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)

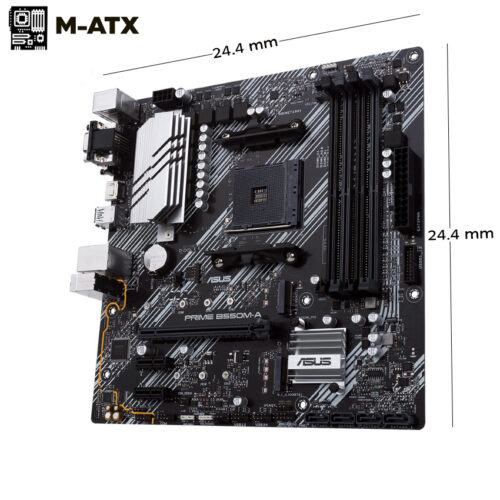

Kích thước

m-ATX
